Agent Client Protocol (ACP)

The Agent Client Protocol (ACP) is an industry-standard protocol that enables AI agents to communicate seamlessly with development tools. Blackbox CLI supports ACP, allowing you to integrate powerful AI coding assistance directly into editors like Zed.

​
What is ACP?

Agent Client Protocol (ACP) provides:
  • Standardized Communication: A unified protocol for AI agents to interact with development environments
  • Context-Aware Intelligence: The agent understands your project structure and coding patterns

​
Setting Up Blackbox CLI with Zed Editor

Follow these steps to configure Blackbox CLI as an external agent in Zed editor using ACP.

​
Prerequisites

Before you begin, ensure you have:
  • Zed editor installed on your system (Download Zed)
  • Blackbox CLI installed.
  • Blackbox AI API key

​
Step-by-Step Setup Guide

​
Step 1: Open Zed Settings

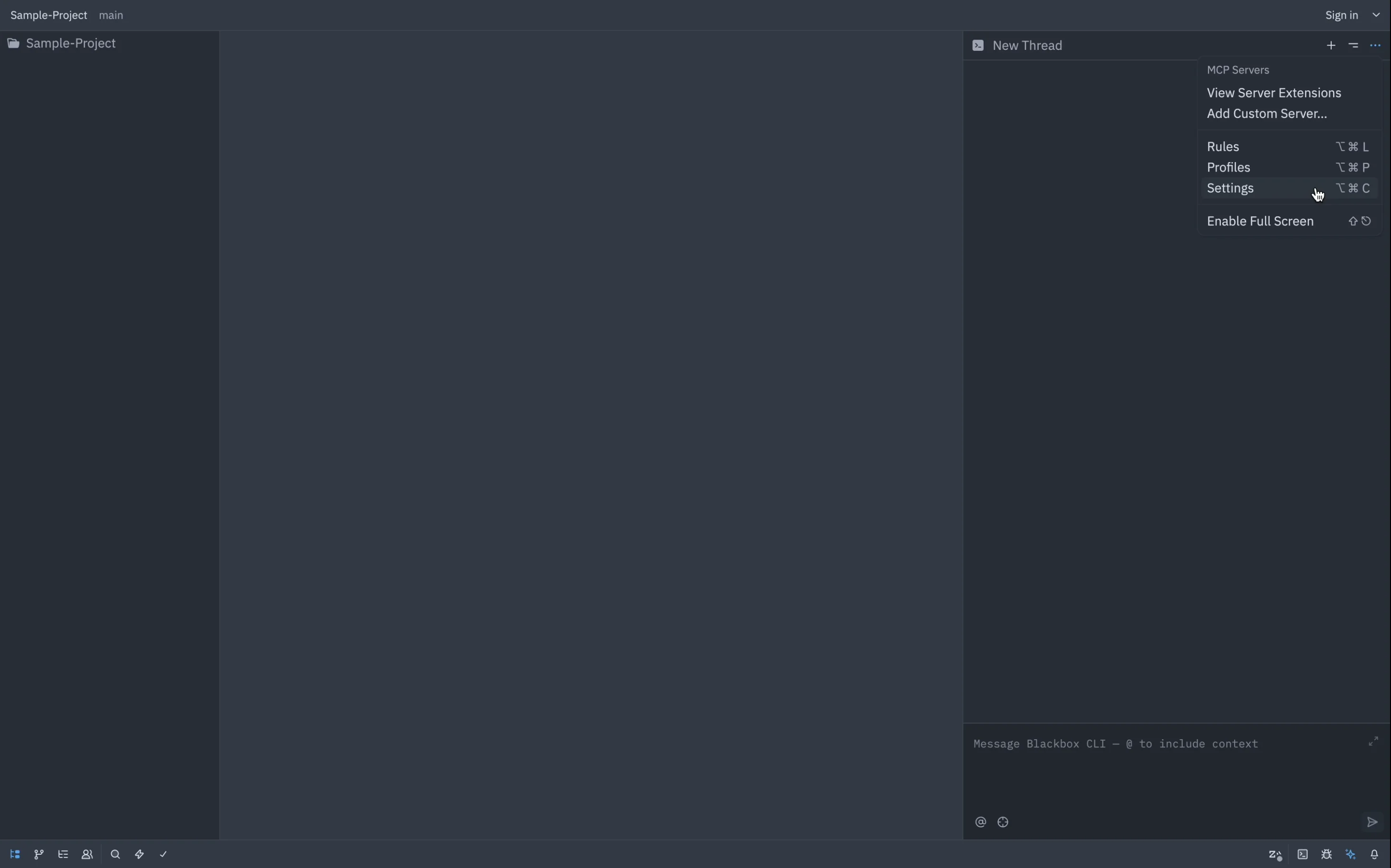

Click on the settings icon in Zed editor to access the configuration panel. Step 1: Click on Settings

​
Step 2: Add Custom Agent

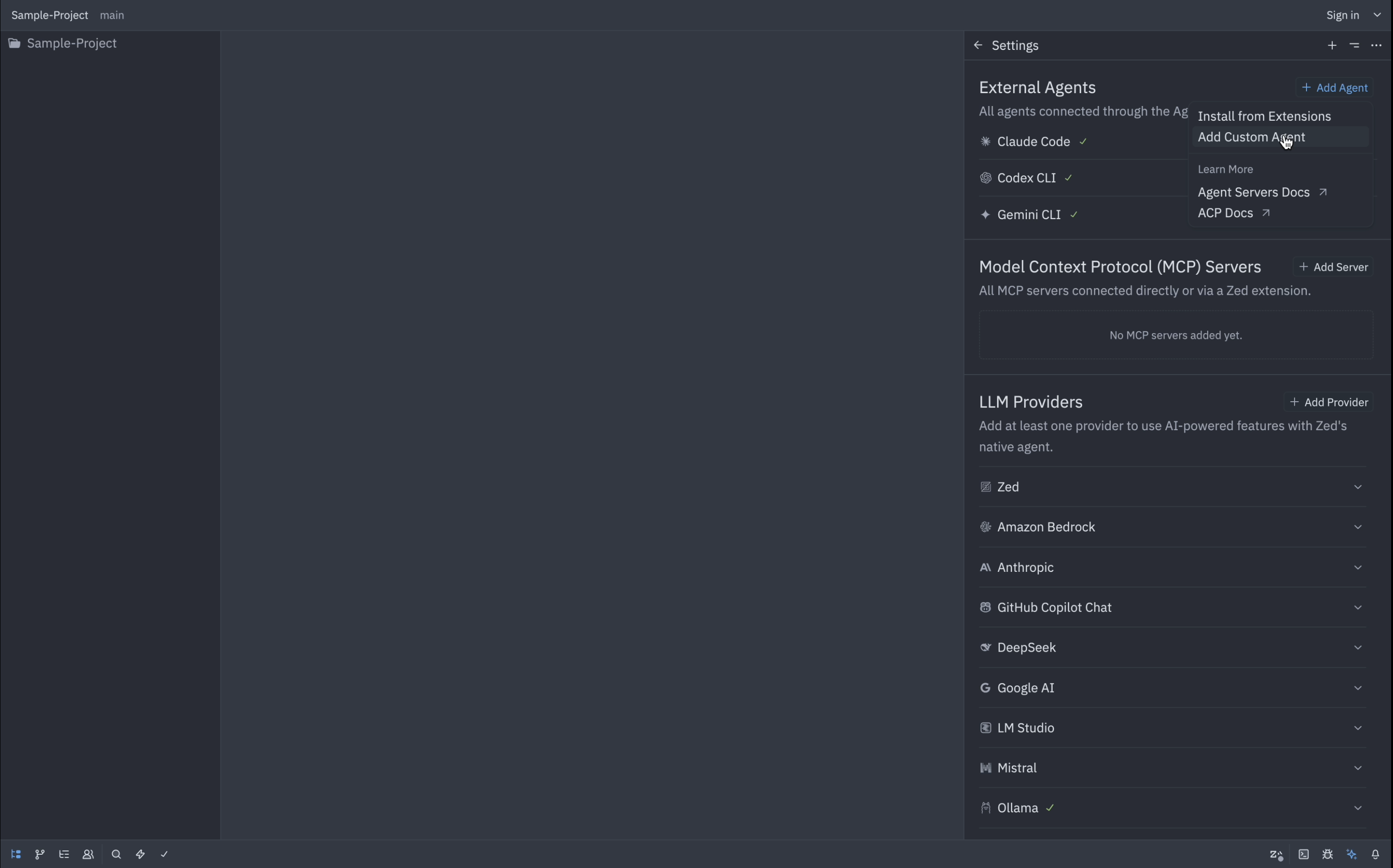

Navigate to the “External Agents” section and click on “Add Custom Agent” to begin configuring Blackbox CLI. Step 2: Add Custom Agent

​
Step 3: Configure Blackbox CLI

Add the following JSON configuration for Blackbox CLI in your Zed settings:
{
  "agent_servers": {
    "Blackbox CLI": {
      "type": "custom",
      "command": "blackbox",
      "args": ["--experimental-acp"],
      "env": { "BLACKBOX_API_KEY": "<your-blackbox-api-key>" }
    }
  }
}

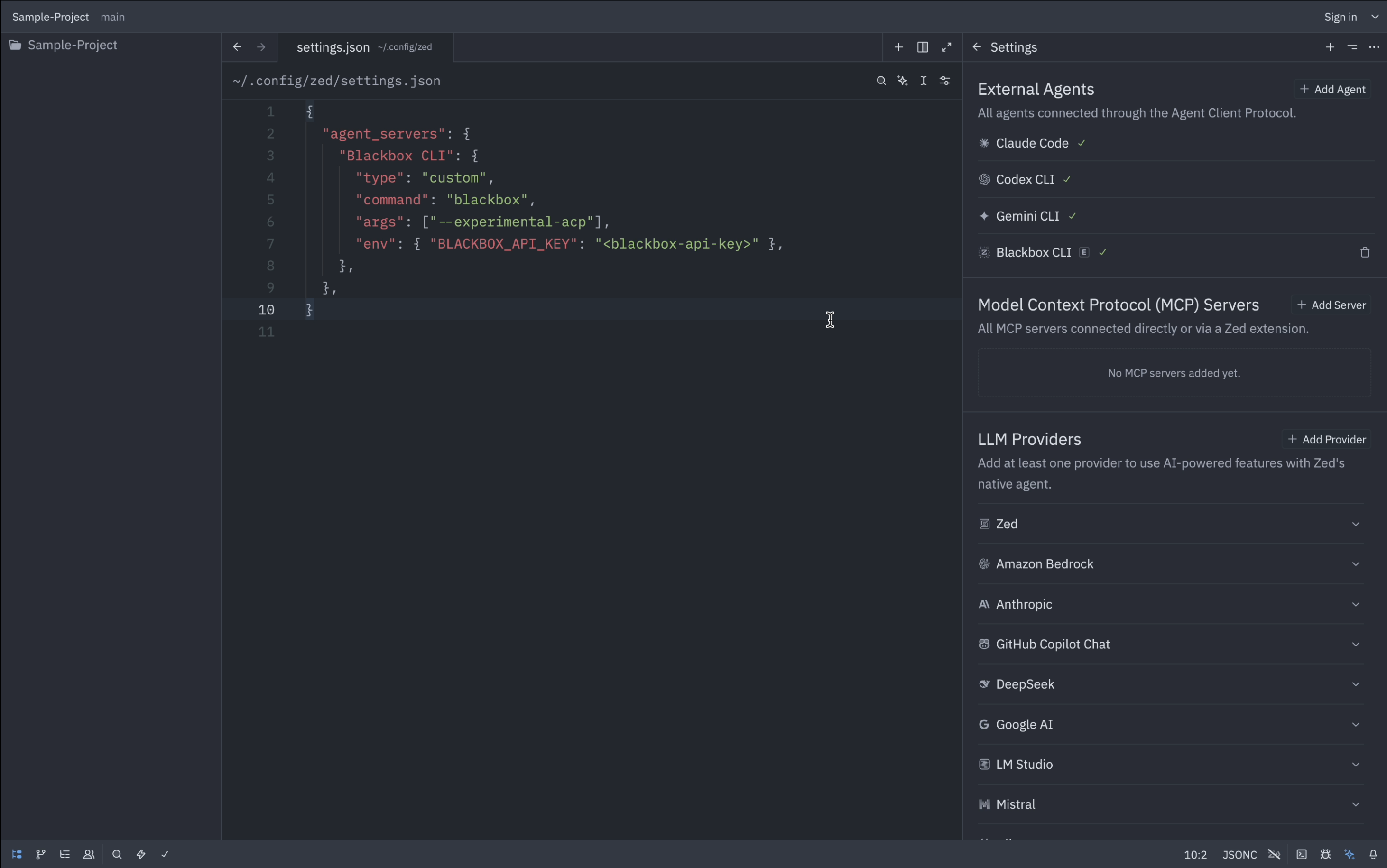

Important: Replace <your-blackbox-api-key> with your actual Blackbox AI API key. Step 3: Add Blackbox JSON Configuration

​
Step 4: Select Blackbox CLI Agent

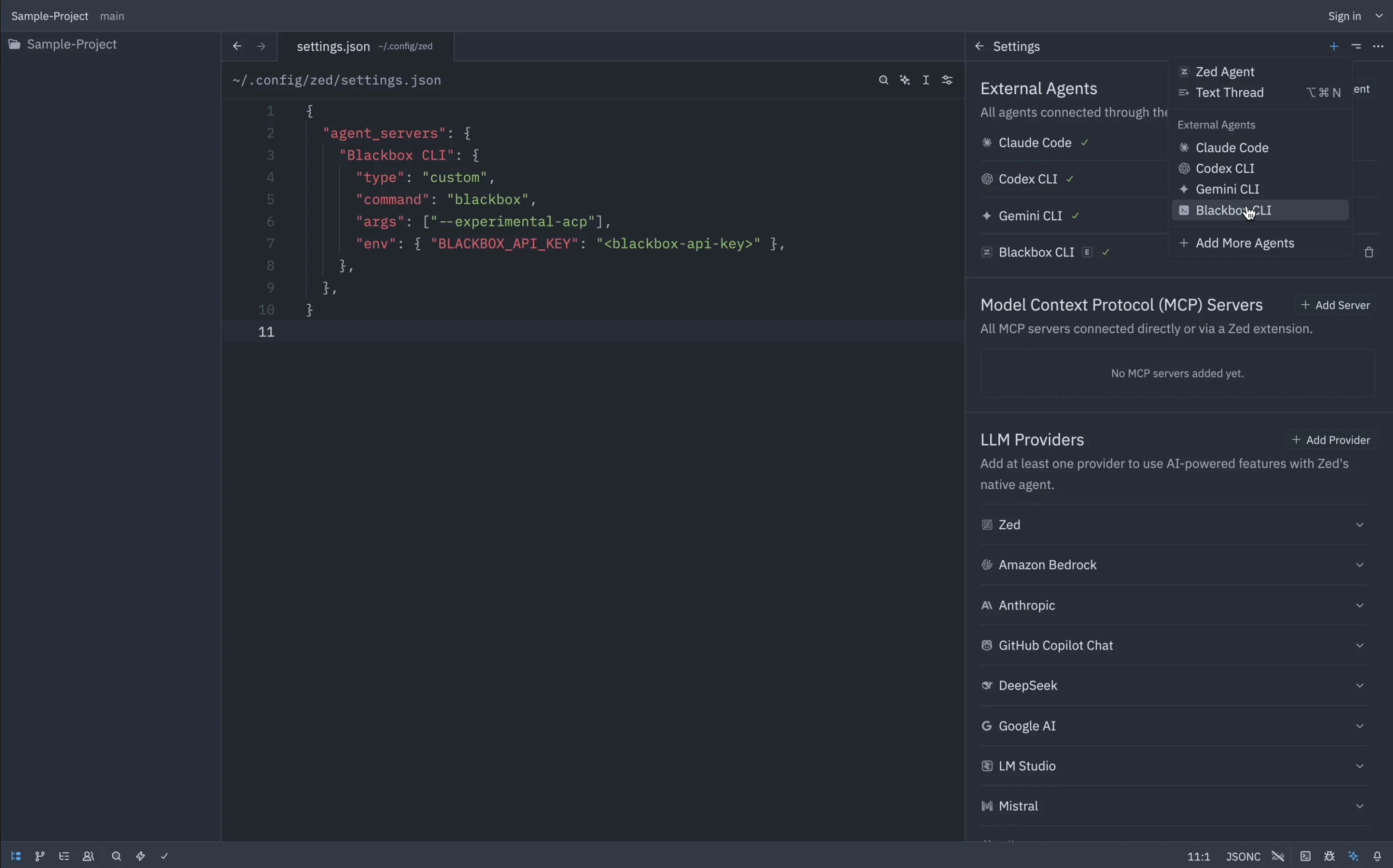

Once configured, select “Blackbox CLI” from the External Agents list to activate it. Step 4: Select Blackbox CLI in External Agents

​
Step 5: Authenticate

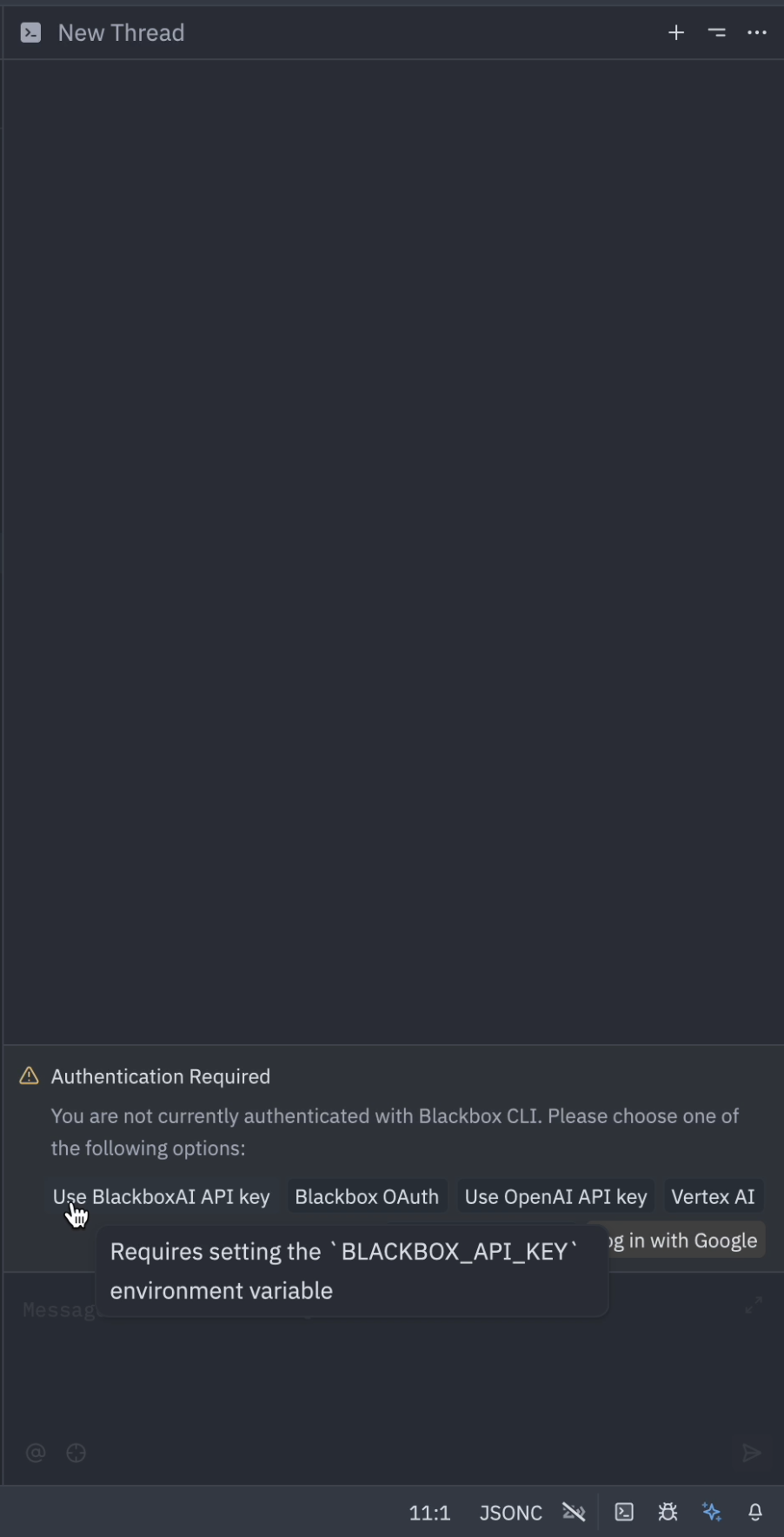

If prompted for authentication, select “Use Blackbox AI API Key” to authenticate using your API key. Step 5: Use Blackbox AI API Key Authentication

​
Step 6: Start Coding with AI

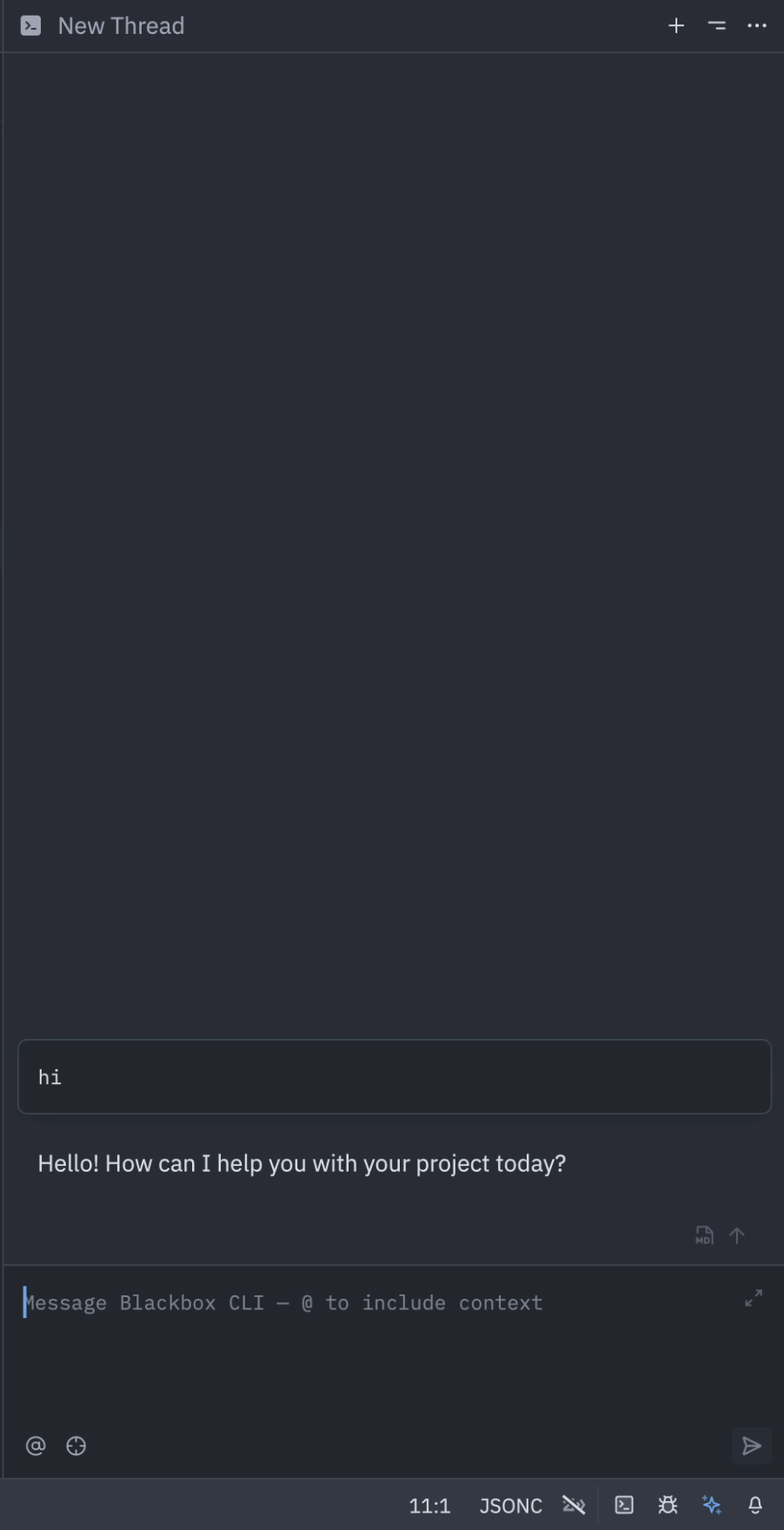

You’re all set! Say “Hi” to test the agent configuration and start leveraging AI-powered coding assistance. Step 6: Agent Ready - Say Hi
